Audio Question

Joined
Dec 7, 2014
Messages
12
Reaction score
0
Points
1
I am new to Mac Forums, today, Hello to everyone. My question I am about to switch to Mac abandoning Windows altogether. I have a question regarding audio. Currently I have a cable running from my PC to my hi fi amplifier. Will it be possible to connect the cable to the rear of the IMac monitor ? Any help that you can give will be very much appreciated.


Slydude

Well-known member
Staff member
Moderator
Joined
Nov 15, 2009
Messages
16,708
Reaction score
601
Points
113
Location
North Louisiana, USA
Your Mac's Specs
2.8 GHz 2008 MacBook Pro 10.11, 8 GB mem, iPhone 12 Pro Max, 2015 iMac 16 GB Big Sur
To give you the best advice about making the connection we'll need a bit more information:

1. Which model iMac are you considering? That will to some extent dictate which output connections are available for use.
2. What make and model is the receiver/ amp you are connecting to? This will give us an idea which audio inputs are available. On newer receivers there may be several possible connections including one or more which provide an all digital connection.

Joined
Jan 20, 2012
Messages
4,895
Reaction score
282
Points
83
Location
North Carolina
Your Mac's Specs
MBAir (2015) OS 12.3.1; iMac (2019) OS 12.3.1
Hello and welcome to the forum! :)

You'll need to provide more information: 1) What Mac computer do you own (model/year/month); 2) What OS X is installed; and 3) What kind of audio cable(s) are you using? Answers to these questions will help. Dave

OP
C
Joined
Dec 7, 2014
Messages
12
Reaction score
0
Points
1
Audio question

To give you the best advice about making the connection we'll need a bit more information:

1. Which model iMac are you considering? That will to some extent dictate which output connections are available for use.
2. What make and model is the receiver/ amp you are connecting to? This will give us an idea which audio inputs are available. On newer receivers there may be several possible connections including one or more which provide an all digital connection.
Many thanks for all your prompt replies I am grateful for your help. The sound card on the computer motherboard is connected via a cable to my Naim Nait 2 integrated amplifier which in turn is connected to the usual loud speakers placed on stands. My intention is to buy the iMac 27 inch non retina model. I have not heard the audio from the iMac so I am somewhat at a loss as how to compare obviously a demonstration would be ideal, hopefully I could arrange one at my local Apple store. Once again many thanks for answering my query.

Joined
Feb 14, 2004
Messages
4,781
Reaction score
166
Points
63
Location
Groves, Texas
Your Mac's Specs
21in. iMac 10.11 --- HP Linux Mint 18
Unless things have changed what you will have on the iMac is a combination headphone/TosLink jack.
You can use a regular mini headphone to RCA cable or optical cable if your amp supports it.

OP
C
Joined
Dec 7, 2014
Messages
12
Reaction score
0
Points
1
Audio question

Thank you once again for your replies. I wonder if there are any hi fi persons out there and have wondered about the quality of the sounds from the speakers from their Mac. Most speakers from PCs leaves much to be desired the sound is so compressed. Anyone had experience?

Joined
Jan 20, 2012
Messages
4,895
Reaction score
282
Points
83
Location
North Carolina
Your Mac's Specs
MBAir (2015) OS 12.3.1; iMac (2019) OS 12.3.1
Thank you once again for your replies. I wonder if there are any hi fi persons out there and have wondered about the quality of the sounds from the speakers from their Mac. Most speakers from PCs leaves much to be desired the sound is so compressed. Anyone had experience?

Well, many of us here know a 'little bit' about audio - ;) I own an iMac (spring, 2013) w/ the back inputs/outputs shown below - the headphone jack obviously will accept a 3.5 mini-stereo plug and of course an adapter could be used for R/L channel RCA audio outputs connected to a tuner or receiver; I'm not sure about an optical option (i.e. Toslink) w/ this port?

As to the iMac's built-in speakers, they are not even as good as my small boombox in the basement, so don't expect hi-fidelity - just not a possibility - NOW, you still have not told us the 'type' of cable coming out of your PC - I looked up the tuner you mentioned (pic of the back below) which seems to have just audio RCA inputs for various sound sources - thus, an RCA/mini-stereo adapter could be used as described above.

In OS X's 'System Preferences', a look at the Sound options shows another output choice called Soundflower, a software DL (info HERE) - I've not used this app, so cannot make any comments.

Finally, keep in mind that your computer will likely be on a Wi-Fi network and has BT (Bluetooth), so 'wireless' sound options are a consideration - about all that I can contribute @ the moment. Dave :)

.

Screen Shot 2014-12-10 at 5.25.25 PM.png

Screen Shot 2014-12-10 at 5.45.47 PM.png

Screen Shot 2014-12-10 at 5.28.44 PM.png

OP
C
Joined
Dec 7, 2014
Messages
12
Reaction score
0
Points
1
Audio question

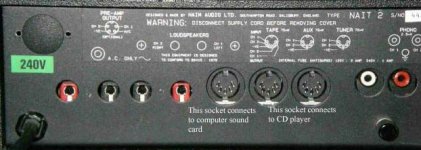

Thank you very much for the detailed reply. My Naim Nait 2 amp has DIN sockets to the rear the left hand one attaches to the PC. The output socket on the PC is the normal 3.5mm a standard cable runs from this with red and black leads connecting to an adapter to the ribbon lead which in turn connects into the rear panel of the amplifier.

NaimNait2 copy.jpg

Joined
Jan 20, 2012
Messages
4,895
Reaction score
282
Points
83
Location
North Carolina
Your Mac's Specs
MBAir (2015) OS 12.3.1; iMac (2019) OS 12.3.1
Hi again - I have not used a DIN connection but since you are transmitting your PC audio w/ a mini-stereo adapter then this is just a R/L RCA output, i.e. 2 channels - I'm assuming that only 2 of the 5 DIN connectors are being used for this connection - may be wrong?

SO, I would think that if you obtain an iMac w/ a headphone 2-channel output, then the same adapter may work fine; also, if you used the adapter shown below into one of your AUX inputs w/ a red/white connector, then that would seem to function also? About the most that I can offer w/o you giving it a try. Good luck & let us know - Dave :)
.


Joined
Nov 2, 2012
Messages
383
Reaction score
1
Points
18
Your Mac's Specs
iMac 21.5" 2.5 i5 8G RAM OS X 10.10.3 (12C60)
Thank you once again for your replies. I wonder if there are any hi fi persons out there and have wondered about the quality of the sounds from the speakers from their Mac. Most speakers from PCs leaves much to be desired the sound is so compressed. Anyone had experience?


Abysmal. About the same sound quality as from a cheap clock radio.

OP
C
Joined
Dec 7, 2014
Messages
12
Reaction score
0
Points
1
Audio question

The lead shown in your attachment is precisely the one that I use. It is so good to receive a positive answer to my questions. One last question slightly off centre my apologies in advance. The wonderful Cosmos screen saver on my MacBook is this still there in Yosemite? I suspect that it is not. Once again many. thanks for your replies.

Joined
Jan 20, 2012
Messages
4,895
Reaction score
282
Points
83
Location
North Carolina
Your Mac's Specs
MBAir (2015) OS 12.3.1; iMac (2019) OS 12.3.1
The lead shown in your attachment is precisely the one that I use. It is so good to receive a positive answer to my questions. One last question slightly off centre my apologies in advance. The wonderful Cosmos screen saver on my MacBook is this still there in Yosemite? I suspect that it is not. Once again many. thanks for your replies.

Great! I have a LOT of MP3 music on my iDevices (old iPod Touch & new iPad Air 2), so when I want to listen to some on my good stereo speakers, I use the same adapter and plug the R/L RCA connectors into an AUX input on my NAD receiver - works fine for me.

Also, use a decent BT (Bluetooth) soundbar w/ my HDTV, so just another option, i.e. Pandora, Spotify, and MP3s from the same iDevices mentioned above - just seems to be SO many choices this day to play your music. Good luck - Dave :)

ADDENDUM: Sorry, did not respond to your 'screen saver' question - don't know - I'm not much of a 'screen saver' guy in my older years (those interests belonged more to my PC days) - BUT, there is plenty on the web - just google 'mac yosemite screen savers' - of course, there are many related to the National Park, which I've visited.

Last edited:
Joined
Aug 19, 2014
Messages
792
Reaction score
4
Points
18
honestly the sound on the macintosh is top's for what it does and any sound system makes it better and better i have never heard of a bad sounding mac even on surround sound

Joined
Jan 20, 2012
Messages
4,895
Reaction score
282
Points
83
Location
North Carolina
Your Mac's Specs
MBAir (2015) OS 12.3.1; iMac (2019) OS 12.3.1
honestly the sound on the macintosh is top's for what it does and any sound system makes it better and better i have never heard of a bad sounding mac even on surround sound

Well, I believe that the question is the 'quality' of the sound emerging from the built-in speakers of the Mac computer - mediocre @ best IMO, as already stated in a previous post; now, using the audio output on the computer and cabled to a decent stereo system, then that is entirely a different listening experience.

Now, as to 'surround sound', not really a possibility w/ just a R/L RCA channel connection which is standard stereo; surround sound is at least a 5:1 speaker setup - HOWEVER, I'm not sure if that headphone output on my iMac (spring 2013) can accept an optical adapter that might output more than a 2-channel signal - others would have to 'chime in' w/ comments and advice (and I'd like to know myself). Dave :)


Slydude

Well-known member
Staff member
Moderator
Joined
Nov 15, 2009
Messages
16,708
Reaction score
601
Points
113
Location
North Louisiana, USA
Your Mac's Specs
2.8 GHz 2008 MacBook Pro 10.11, 8 GB mem, iPhone 12 Pro Max, 2015 iMac 16 GB Big Sur
One last question slightly off centre my apologies in advance. The wonderful Cosmos screen saver on my MacBook is this still there in Yosemite? I suspect that it is not. Once again many. thanks for your replies.

It is there for me in Yosemite but that might be because I did an upgrade installation rather than "clean" install. Here's how to find out if it is there:
1. Open System Preferences>Desktop & Screensaver pane.
2.Click the Screen Saver tab.
3. Look at the Source drop down menu. If Cosmos is installed it will be one of the options there when you click the drop0 down.


bobtomay

,
Retired Staff
Joined
Dec 22, 2006
Messages
26,561
Reaction score
677
Points
113
Location
Texas, where else?
Your Mac's Specs
15" MBP '06 2.33 C2D 4GB 10.7; 13" MBA '14 1.8 i7 8GB 10.11; 21" iMac '13 2.9 i5 8GB 10.11; 6S
Now, as to 'surround sound', not really a possibility w/ just a R/L RCA channel connection which is standard stereo; surround sound is at least a 5:1 speaker setup - HOWEVER, I'm not sure if that headphone output on my iMac (spring 2013) can accept an optical adapter that might output more than a 2-channel signal - others would have to 'chime in' w/ comments and advice (and I'd like to know myself). Dave :)

Ever since the very first Intel Macs:

The Mac Pro typically has separate analog/digital audio ports. On every other "Intel" Mac thus far, the "headphone" jack is a combined analog/digital port capable of 2 channel stereo via analog or "up to" 5.1 output via a mini-toslnk connection.

"Up to" meaning that you will only get 5.1 output from sources that have 5.1 audio. Typically, that means movies. Using the optical output is not going to magically turn all of your 2 channel sources (probably all of your music) into a faux 5.1 output. That would need to be done at your receiver.

Joined
Feb 29, 2012
Messages
122
Reaction score
2
Points
18
The iMac sound out port takes standard RCA cables and I have mine running out to my HIFi and get excellent sound.

No issue to my knowledge. I'd worry more about the original file quality.

I have converted all my CDs to Apple Lossless (ALAC) or FLAC so the quality remains unchanged. iTunes will need ALAC files, but there is plenty of software around to run all the modern formats. iTunes is confined to AAC, mp3, m4a, ALAC, WAV and AIFF (both uncompressed) but will freely convert between them.

XLD [free] will batch convert between formats, no problem if they are lossless.

XBMC [free] will turn your Mac into a multi-media player and plays just about everything.

Joined
Jan 20, 2012
Messages
4,895
Reaction score
282
Points
83
Location
North Carolina
Your Mac's Specs
MBAir (2015) OS 12.3.1; iMac (2019) OS 12.3.1
Ever since the very first Intel Macs:

The Mac Pro typically has separate analog/digital audio ports. On every other "Intel" Mac thus far, the "headphone" jack is a combined analog/digital port capable of 2 channel stereo via analog or "up to" 5.1 output via a mini-toslnk connection.

"Up to" meaning that you will only get 5.1 output from sources that have 5.1 audio. Typically, that means movies. Using the optical output is not going to magically turn all of your 2 channel sources (probably all of your music) into a faux 5.1 output. That would need to be done at your receiver.

Hi Bobtomay - thanks for the additional information; now I do not have 5:1 stereo equipment, so a mini-stereo jack w/ R/L RCA inputs would be fine, as already discussed.

But for those w/ a 'surround sound' system, would the small adapter or the cable (pic) w/ one end looking like a mini-stereo jack make the 'optical' Toslink connection (arrows are where I assume the optical fiber end is located)? I guess my question: is the optical output from the Mac located at the bottom of the headphone output jack (like on my 2013 iMac or even my MBPro, same year)? Dave :)
.


Joined
Jul 28, 2010
Messages
105
Reaction score
0
Points
16
Location
Delta, B.C., Canada, eh?
Your Mac's Specs
Late 2012 Mac Mini i5, macOS 10.15.4, iPhone 11 Pro Max, PowerBook G4, iMac G3/4/5
I have used my Mac Mini (late 2012) with a typical 1/8" stereo to 2 RCA type cables to a mixing console or direct to a stereo receiver with great sound quality. I am currently using a Tascam USB audio interface for audio recording and have the mini feeding its audio via USB back to the Tascam unit and then out to a mixer then to a stereo receiver, again with great sound resulting. I imagine similar options would be available to an iMac.
